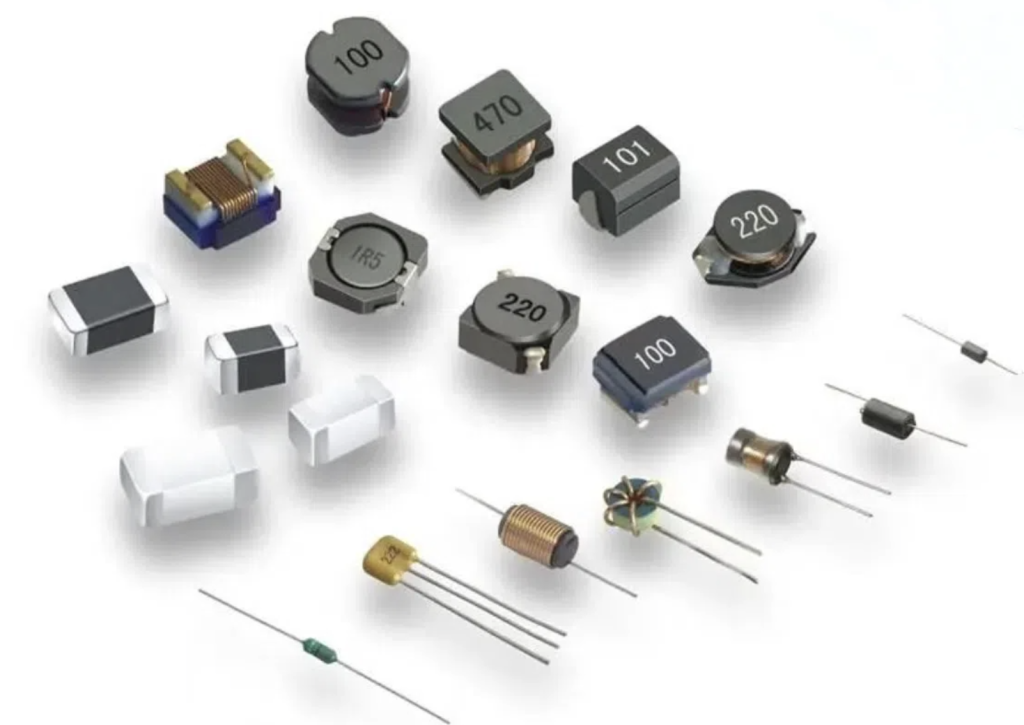

SMD Resistors and Capacitors: The Two Most Common Types
In modern electronic products, most components are SMD (Surface-Mount Devices), including SMD resistors and SMD capacitors, which are essential for circuit design and reliability.For more information on part numbers, lead-free options, or packaging, visit our Products page.
1. Common SMD Resistor and Capacitor Sizes
| Size | Imperial | Metric |
|---|---|---|
| 01005 | 01005 | 0402 |
| 0201 | 0201 | 0603 |
| 0402 | 0402 | 1005 |
| 0603 | 0603 | 1608 |
| 0805 | 0805 | 2012 |
| 1206 | 1206 | 3216 |
The most commonly used sizes are:
0402
0603
0805
Example:
10k 0603 resistor
100nF 0402 capacitor
2. The Most Common Type of Capacitor: MLCC
Currently, the most widely used capacitor in the market is:
MLCC (Multi-Layer Ceramic Capacitor)
Characteristics:
Small size
Low cost
High stability
Extremely large usage volume
They are widely used in many applications, such as:
Smartphones
Computers
Automotive electronics
Industrial equipment
Some electronic devices contain hundreds or even thousands of capacitors internally.
3. SMD Capacitor Model Structure Example
Example model:
GRM188R71C104KA01
General structure:
| Part | Meaning |
|---|---|
| GRM | Series |
| 188 | Size 0603 |
| R7 | Material |
| 1C | Voltage |
| 104 | Capacitance |
| K | Tolerance |
Among them:
104 = 100000 pF = 100 nF = 0.1 µF
Common codes:
| Code | Capacitance |
|---|---|
| 101 | 100 pF |
| 102 | 1 nF |
| 103 | 10 nF |
| 104 | 100 nF |
| 105 | 1 µF |
4. SMD Resistor Specification Example
Example:
10K 0603 1%
Meaning:
| Parameter | Meaning |
|---|---|
| 10K | Resistance |
| 0603 | Size |
| 1% | Tolerance |
Common resistance values:
1Ω
10Ω
100Ω
1KΩ
10KΩ
100KΩ
5. Common Capacitor and Resistor Brands
Capacitor brands:
Murata
Samsung Electro-Mechanics
TDK
Taiyo Yuden
Yageo
Resistor brands:
Yageo
Vishay
Panasonic
KOA Speer Electronics
6. Industry Characteristics
During the design and manufacturing of electronic products, a large number of basic components such as resistors and capacitors are typically required for circuit stabilization, signal processing, and power management.
In particular, MLCC capacitors are used in extremely large quantities in consumer electronics and automotive electronics.
