STW4N150
Manufacturer Number: STW4N150
Manufacturer: STMicroelectronics
Description / Features: MOSFET N-channel 1500V PowerMesh – high-voltage, low-loss, reliable switching suitable for power electronics applications.
Product Information-STW4N150
Manufacturer: STMicroelectronics
Brand: STMicroelectronics
Series: STW4N150
Product Type: MOSFET (N-Channel, Enhancement Mode)
Technology: Silicon (Si)
Channels: 1

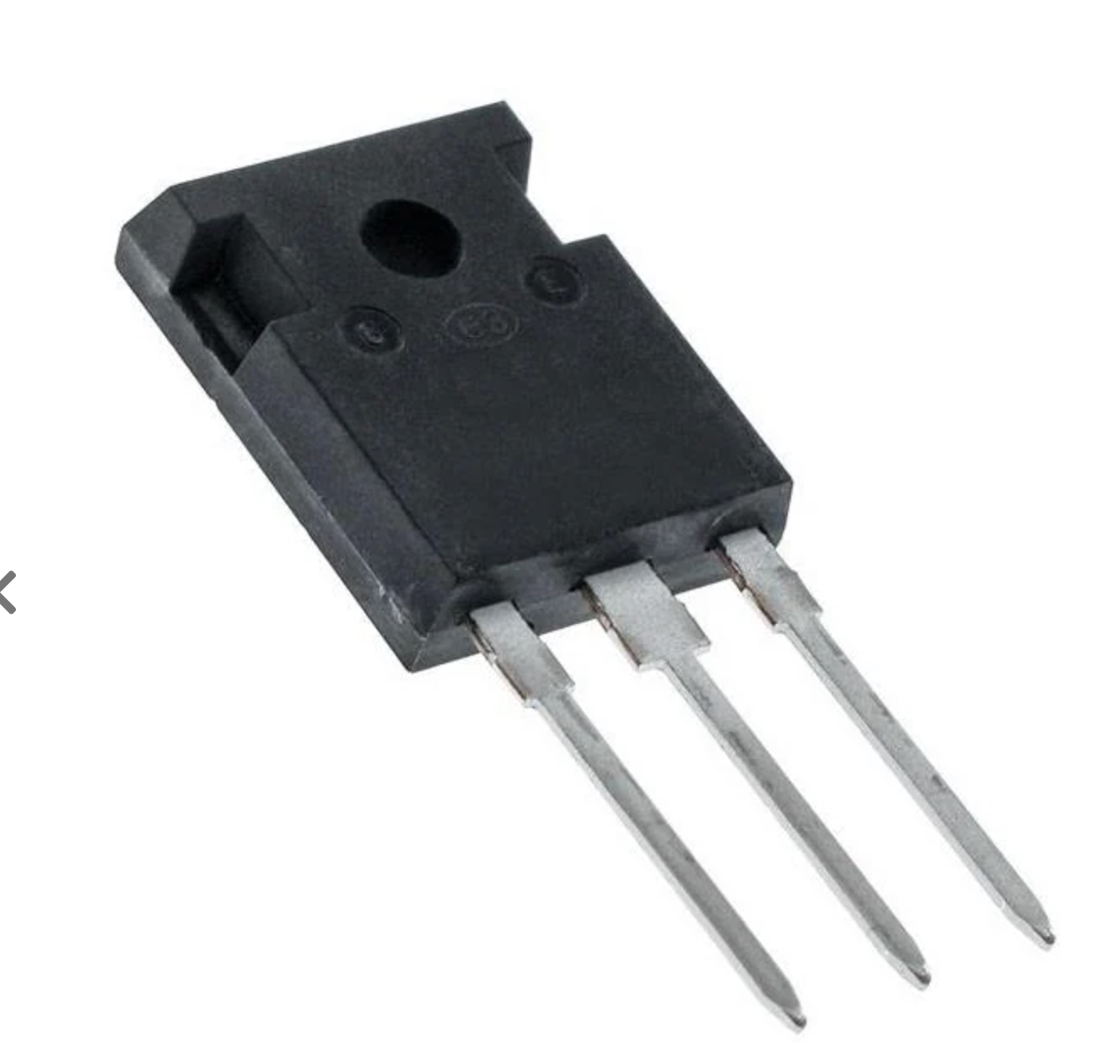

Package / Case: TO-247-3
Mounting Style: Through Hole
Channel Polarity: N-Channel
Configuration: Single
Company Name / Product Series: PowerMESH
Package Type: Tube
Subcategory: Transistors
Country of Origin: Singapore (SG)
Assembly Country: Not Available
Diffusion Country: Not Available
STW4N150 Electrical Specifications
Vds (Drain-Source Breakdown Voltage): 1.5 kV
Id (Continuous Drain Current): 4 A
Rds(on) (Drain-Source On-Resistance): 7 Ω
Vgs (Gate-Source Voltage): -30 V to +30 V
Vgs(th) (Gate Threshold Voltage): 3 V
Qg (Gate Charge): 30 nC
Power Dissipation (Pd): 160 W
Rise Time (tr): 30 ns
Fall Time (tf): 45 ns
Standard Turn-On Delay: 35 ns
Standard Turn-Off Delay: 45 ns
Operating Temperature Range: -55 °C to +150 °C
Mechanical / Other
Weight per Piece: 6 g
