Alternative Part Numbers

Fully Compatible Alternatives (Recommended):

• Z16F2811AL20SG
  Functionally equivalent to Z16F2811AL20EG, with differences primarily related to packaging type or environmental compliance specifications.
• Z16F2811AL20AG
  Same device family with minor variations such as temperature grade, packaging, or production revision.

Lower Memory Alternative (Subject to Application Evaluation):

• Z16F3211AL20EG
  Belongs to the same ZNEO family, featuring reduced Flash memory (32KB compared to 128KB). Software compatibility should be verified prior to substitution.

Why Choose Z16F2811AL20EG

The Z16F2811AL20EG, developed by ZiLOG, is a high-performance 16-bit microcontroller designed for industrial and embedded control applications. Moreover, it offers stable processing capabilities, rich peripheral resources, and excellent system integration.

Performance and Architecture

Based on the mature ZNEO architecture, it operates at up to 20 MHz, with 128KB Flash and 4KB RAM, meeting the requirements of most medium-complexity control systems. In addition, its abundant interfaces, including eSPI, I²C, UART, and multi-channel ADCs, provide efficient data acquisition and communication control.

Reliability and Environmental Specifications

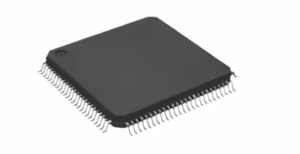

This device supports an industrial operating temperature range of -40°C to +105°C and comes in an LQFP-100 package, making it suitable for applications requiring high stability and long-term operation. Furthermore, its low-voltage operation (2.7V–3.6V) makes it ideal for power-sensitive embedded systems.

Z16F2811AL20EG Typical Application Scenarios

Thanks to its performance and integration, the Z16F2811AL20EG is widely used in:

• Industrial Automation Control Systems – PLC control units, sensor interfaces, and actuator control.
• Motor Control and Drive Systems – fans, power tools, and small drive modules.
• Embedded Control Devices – control panels, logic control modules, and customized control systems.
• Intelligent Instruments and Measurement Equipment – data acquisition, signal processing, and system control.
• Communication Interfaces and Peripheral Control Modules – supports multi-protocol communication interfaces.

Therefore, it is ideal for engineers designing industrial, embedded, or smart instrumentation projects.

Z16F2811AL20EG FAQs

1. Is the Z16F2811AL20EG currently available?
This part may experience limited availability or be approaching end-of-life. Therefore, it is recommended to evaluate alternative options in advance.

2. Recommended alternative part numbers:

• Z16F2811AL20SG
• Z16F2811AL20AG
  These alternatives typically allow direct replacement or require minimal adjustments.

3. Can a lower-capacity variant be used as a substitute?
The Z16F3211AL20EG has 32KB Flash, so program size must be verified.

4. Can MCUs from other brands be used as replacements?
Products from other manufacturers have different architectures and pin assignments. Thus, hardware and software redesign is required, which does not qualify as direct replacement.

5. Key considerations for selecting a replacement:

• Pin compatibility
• Memory resources (Flash / RAM)
• Peripheral interface matching
• Software migration requirements
