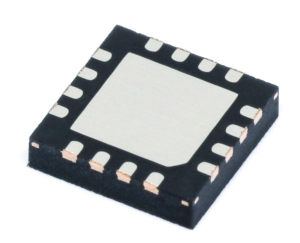

ADA4096-4ACPZ-R7
Manufacturer Number: ADA4096-4ACPZ-R7
Manufacturer: Analog Devices
Description / Features: Precision amplifier 30V, Micropower, OVP, RRIO OpAmp
For more information about integrated circuits, please visit the ICs page.
ADA4096-4ACPZ-R7: High-Precision 4-Channel Operational Amplifier
The ADA4096-4ACPZ-R7 is a high-precision 4-channel operational amplifier that provides accurate analog signal processing. Its low noise, stable performance, and precise voltage amplification make it suitable for industrial electronics, sensor interfaces, and data acquisition systems.
Additionally, this IC is ideal for battery-powered circuits, as it consumes very little current while maintaining excellent efficiency. By integrating the ADA4096-4ACPZ-R7, circuits can achieve improved signal quality and reliable operation, making it a versatile choice for both educational projects and professional electronic designs.
Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Precision Amplifier |
| Series | ADA4096-4 |
| Number of Channels | 4 Channel |
| Gain Bandwidth Product (GBP) | 786 kHz |
| Slew Rate | 300 mV/µs |
| Input Offset Voltage (Vos) | 35 µV |
| Input Bias Current (Ib) | 10 nA |
| Supply Voltage – Max | 30 V, ±15 V |
| Supply Voltage – Min | 3 V, ±1.5 V |
| Operating Supply Current | 240 µA |
| Output Current per Channel | 10 mA |
| CMRR (Common Mode Rejection Ratio) | 95 dB |
| PSRR (Power Supply Rejection Ratio) | 100 dB |
| Input Voltage Noise Density | 27 nV/√Hz |
| Voltage Gain | 111 dB |
| Output Type | Rail-to-Rail |
| Package / Case | LFCSP-16 |
| Mounting Style | SMD/SMT |
| Shutdown | No Shutdown |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Packaging | Reel / Cut Tape / MouseReel |
| Factory Pack Quantity | 1500 pcs |
| Moisture Sensitivity | Yes |
| Country of Origin | Korea |
| Unit Weight | 171 mg |
Key Features
4 Channels in a single IC, enabling compact multi-signal amplification
High Gain Bandwidth Product (GBP): 786 kHz, ensuring fast and stable signal response
Slew Rate: 300 mV/µs, suitable for high-speed analog signals
Ultra-low Input Offset Voltage: 35 µV and Input Bias Current: 10 nA for maximum precision
CMRR: 95 dB and PSRR: 100 dB, reducing noise and interference
Rail-to-Rail Output for full dynamic range
Operating Voltage: 3 V to 30 V (±1.5 V to ±15 V) for flexible system integration
Surface-Mount LFCSP-16 Package, compatible with SMT assembly
Wide Operating Temperature Range: -40°C to +125°C
Additionally, the IC comes with moisture sensitivity protection, and factory packaging options include Reel / Cut Tape / MouseReel for high-volume production.
Why Choose ADA4096-4ACPZ-R7?
This amplifier IC ensures superior accuracy and stability, making it perfect for:
Sensor signal conditioning in industrial systems
Precision voltage monitoring in instrumentation
Data acquisition and analog-to-digital conversion circuits
Battery-powered electronics with low current consumption
Furthermore, it offers easy integration into both learning environments and professional designs. Students and engineers can use this IC as a reference for high-precision analog circuit design, while professionals benefit from its reliability in industrial applications.
FAQ: ADA4096-4ACPZ-R7
Q1: What is the ADA4096-4ACPZ-R7 used for?
A: The ADA4096-4ACPZ-R7 is a high-precision operational amplifier IC designed for accurate analog signal processing in electronic circuits, including sensor interfacing, data acquisition systems, and industrial applications.
Q2: What package does the ADA4096-4ACPZ-R7 come in?
A: It is available in the ACPZ package, suitable for surface-mount technology (SMT) assembly.
Q3: What are the typical applications?
A: Typical applications include:
Precision analog signal conditioning
Sensor signal amplification
Voltage monitoring circuits
Battery-powered electronic devices
Data acquisition systems
Q4: Can this IC be used for learning or reference purposes?
A: Yes, it can be used as a technical reference for studying high-precision analog circuits, but it should not be considered official product documentation.
Q5: Where can I view a demonstration ?
A: A tutorial or practical demonstration is available on our YouTube channel.
Notice:Any content related to ADA4096-4ACPZ-R7 provided for “learning or technical study purposes” is for reference only and should not be considered official product documentation or specifications.
