IRFR430BTF
Manufacturer Number: IRFR430BTF
Manufacturer: onsemi
Description / Features: MOSFET 500V Single
The IRFR430BTF is a high-performance N-channel MOSFET designed for efficient power switching. Specifically, it offers low on-resistance and fast switching capabilities, making it suitable for high-frequency applications.
In addition, this MOSFET features a robust thermal performance, which ensures reliability even under heavy loads. Furthermore, its compact TO-220 package allows easy integration into various electronic designs.
Due to these characteristics, the IRFR430BTF is widely used in power supplies, motor drivers, and industrial automation circuits. Consequently, engineers can achieve both high efficiency and stability in their designs.
Overall, the IRFR430BTF combines durability, performance, and ease of use, making it an ideal choice for modern electronic applications.
IRFR430BTF N-Channel MOSFET – Product Information
Specifications of IRFR430BTF
| Attribute | Value |
|---|---|
| Manufacturer | onsemi |
| Brand | onsemi |
| Product Type | N-Channel Enhancement Mode MOSFET |
| Technology | Silicon (Si) |
| Channel Configuration | Single |
| Transistor Polarity | N-Channel |
| Channel Mode | Enhancement |
| Subcategory | Transistors |
| RoHS Compliance | No |
| Part Number Alias | IRFR430BTF |
Package & Mounting
| Attribute | Value |
|---|---|
| Mounting Style | SMD / SMT |

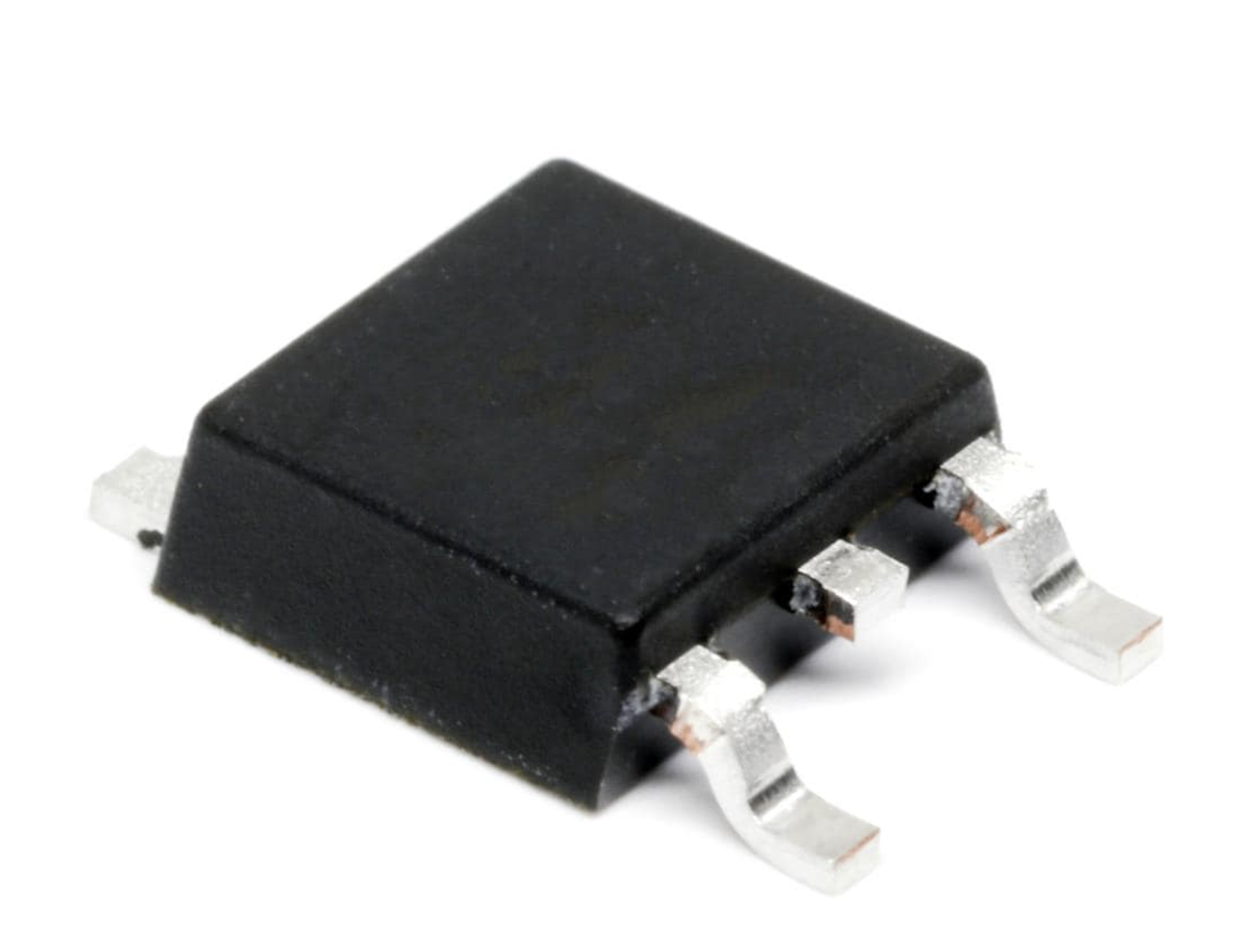

| Package / Case | DPAK-3 (TO-252-3) |
| Package Type / Factory Packaging | Reel |
Electrical Specifications – IRFR430BTF
| Parameter | Value |
|---|---|
| Drain-Source Breakdown Voltage (Vds) | 500 V |
| Continuous Drain Current (Id) | 3.5 A |
| Drain-Source On-Resistance (Rds(on)) | 1.5 Ω |
| Gate-Source Voltage (Vgs) | –30 V to +30 V |
| Minimum Operating Temperature | –55 °C |
| Maximum Operating Temperature | +150 °C |
| Power Dissipation (Pd) | 2.5 W |
Switching Characteristics
| Parameter | Value |
|---|---|
| Rise Time (tr) | 45 ns |
| Fall Time (tf) | 50 ns |
| Typical Turn-On Delay Time (td(on)) | 15 ns |
| Typical Turn-Off Delay Time (td(off)) | 85 ns |
Additional Information
| Attribute | Value |
|---|---|
| Trademark / Technology | onsemi |
| Configuration | Single |
| Product Type Category | MOSFETs |
| Country of Origin | Not Available |
| Assembly Country | Not Available |
| Diffusion Country | Not Available |
| Crystal Type | 1 N-Channel |
| Unit Weight | 330 mg |
