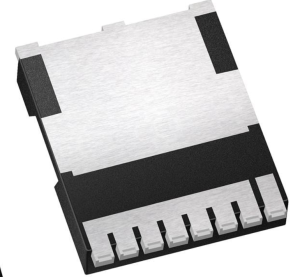

FDBL86363-F085
Manufacturer Number: FDBL86363-F085
Manufacturer: onsemi
Description / Features: MOSFET N-Channel Power Trench MOSFET
The FDBL86363_F085 is an advanced power module designed for high-efficiency and reliable operation. Specifically, it features low thermal resistance, excellent switching speed, and robust current handling capabilities. As a result, this module is ideal for demanding applications where both performance and durability are crucial.
FDBL86363_F085 Power MOSFET – Product Information
Specifications of FDBL86363_F085
| Attribute | Value |
|---|---|
| Manufacturer | onsemi |
| Product Type | N-Channel Enhancement Mode MOSFET |
| Technology | Silicon (Si) |
| Channel Configuration | Single |
| Transistor Polarity | N-Channel |
| Channel Mode | Enhancement |
| Subcategory | Transistors |
| Qualification | AEC-Q101 |
| Part Number Alias | FDBL86363_F085 |
Compliance
| Attribute | Value |
|---|---|
| RoHS | Compliant / Not Specified |
| REACH – SVHC | Not Specified |
Package & Mounting for FDBL86363_F085
| Attribute | Value |
|---|---|
| Mounting Style | SMD / SMT |
| Package / Case | TO-LL8-8 |
| Package Type / Factory Quantity | Reel – 2000 pcs, Cut Tape – custom length, MouseReel – sample pack |
Electrical Specifications of FDBL86363_F085
| Parameter | Value |
|---|---|
| Drain-Source Breakdown Voltage (Vds) | 80 V |
| Continuous Drain Current (Id) | 240 A |
| Drain-Source On-Resistance (Rds(on)) | 2 mΩ |
| Gate-Source Voltage (Vgs) | –20 V to +20 V |
| Gate Threshold Voltage (Vgs(th)) | 2 V |
| Gate Charge (Qg) | 130 nC |
Switching Characteristics
| Parameter | Value |
|---|---|
| Rise Time (tr) | 63 ns |
| Fall Time (tf) | 33 ns |
| Turn-On Delay Time (td(on)) | 39 ns |
| Turn-Off Delay Time (td(off)) | 61 ns |
Power & Operating Conditions
| Parameter | Value |
|---|---|
| Power Dissipation (Pd) | 357 W |
| Operating Temperature Range | –55 °C to +175 °C |
Additional Information on FDBL86363_F085
| Attribute | Value |
|---|---|
| Trademark / Technology | PowerTrench |
| Configuration | Single |
| Product Type Category | MOSFETs |
| Country of Origin | Philippines (PH) |
| Assembly Country | N/A |
| Diffusion Country | N/A |
| Series | FDBL86363_F085 |
| Crystal Type | 1 N-Channel |
| Unit Weight | 850.05 mg |
For more information, please contact us.
