LPC2294HBD144/01 Product Overview

LPC2294HBD144/01 ARM7TDMI-S 16/32 Bit Microcontroller for Embedded Control Applications

The NXP Semiconductors LPC2294HBD144/01 is a 16/32-bit microcontroller based on the ARM7TDMI-S processor core. It is designed for embedded control applications that require reliable real-time performance, flexible peripheral integration, and efficient system design.

This device is part of the LPC2000 microcontroller family and is commonly used in industrial control systems, communication equipment, and embedded automation applications.

LPC2294HBD144/01 Key Features

The LPC2294HBD144/01 integrates a wide range of on-chip peripherals to support embedded system design with reduced external component requirements.

Core and Architecture

• ARM7TDMI-S 16/32-bit RISC processor core
• Optimized for embedded and real-time control applications
• Efficient instruction pipeline architecture

Memory System

• On-chip program memory (device-family dependent implementation)
• On-chip SRAM for data processing and runtime operation
• External memory interface support for system expansion

Peripheral Integration

• Multiple UART interfaces for serial communication
• SPI and I2C interfaces for peripheral connectivity
• 10-bit ADC for analog signal input processing
• PWM functions for control applications such as motor driving
• General-purpose timers and watchdog timer
• Vectored Interrupt Controller (VIC) for fast interrupt handling

System Characteristics

• Designed for real-time embedded applications
• Low-power operation modes for energy efficiency
• Industrial application-oriented design concept
• 144-pin LQFP surface-mount package

LPC2294HBD144/01 Applications

The LPC2294HBD144/01 is widely used in embedded systems including:

• Industrial automation and control systems
• Motor control and motion systems
• Embedded communication devices
• Data acquisition and monitoring systems
• Consumer and smart electronic equipment
• General-purpose embedded control platforms

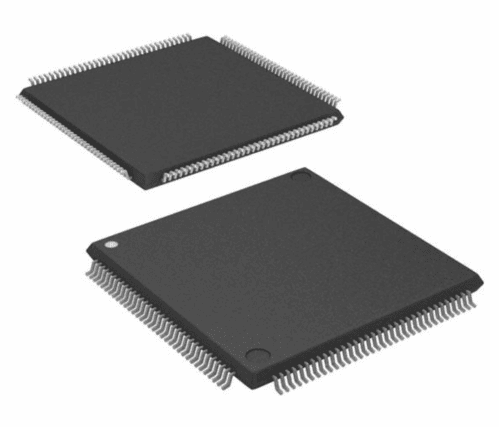

LPC2294HBD144/01 Package Information

• Package Type: LQFP (Low-profile Quad Flat Package)
• Pin Count: 144 pins
• Mounting Type: Surface Mount Device (SMD)
• Package Form: Square IC package with gull-wing leads on all four sides

This package is designed for compact PCB integration and reliable surface mounting in embedded system designs.

LPC2294HBD144/01 Functional Description

The LPC2294HBD144/01 integrates a processor core, memory resources, and multiple peripherals into a single chip solution.

It supports:

• Embedded real-time processing
• Multi-interface communication systems
• Reduced external component system design
• Efficient control-oriented embedded applications

FAQ LPC2294HBD144/01

What is LPC2294HBD144/01 used for

It is used in embedded control systems such as industrial automation, communication devices, and real-time electronic control applications.

What core architecture does this device use

It uses the ARM7TDMI-S 16/32-bit RISC processor core designed for embedded applications.

Does LPC2294HBD144/01 support external memory

Yes, it supports external memory expansion through its memory interface.

What communication interfaces are available

It includes UART, SPI, and I2C interfaces for system-level communication.

What type of package does this IC use

It comes in a 144-pin LQFP surface-mount package.

Is this device still used in modern systems

Yes, it is commonly used in existing industrial and embedded designs where ARM7-based architecture is sufficient.

What applications is it suitable for

It is suitable for industrial control, embedded automation, communication systems, and general embedded applications.
